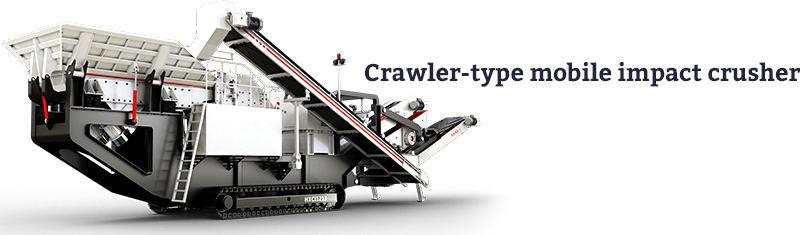

Crawler Type Mobile Impact Crusher

Crawler Type Mobile Impact Crusher

Impact crusher : PF-1210 PF-1214 PF-1315

Main belt conveyor: B800×8.5M B1000×9M

Motor power: ( kw): 250-300

Note: Welcome to contact us online or leave us a message.

Overview:

Introduction to Crawler Mobile Impact Crushing Plant

Crawler type mobile impact crusher is a kind of mobile crushing station regard impact as its main crushing equipment and can be arranged different types according to different requirements.

Working Principle of Crawler Type Mobile Impact Crusher

Materials conveyed into the crushing cavity by feeding machine. After primary crushing by jaw crusher, through the closed-cycle made by circular vibrating screen, materials can be crushed circularly. Final products are discharged by the discharge machine to conduct continuous work. According to actual production needs, crawler type mobile impact crusher can unload circular vibrating screen to conduct primary crushing directly which is more convenient compared with other crushing equipment.

Crawler Type Mobile Impact Crusher

Advantages of Crawler Mobile Impact Crushing Plant

Crawler type mobile impact crusher is mainly used in cement road reconstruction, municipal urban construction waste treatment, construction, quarrying, mining, recycling, etc. Sites can be adjusted in demolition site moved, select different devices processing different kinds of stone. Equipped with dust-proof set can reduce dust pollution; diesel-powered can work in the field without power; remote-control move, safe and reliable; simple operation and maintenance.

Fote mobile impact crushing station is a fully hydraulic drive self-propelled mobile crushing plant, this highly integrated device feeders and crusher, vibrating screen, belt conveyor, sieve belt conveyors, crushers and integration of on-board installation, integration of vehicle motor and control box. More convenient and compact structure make it quickly put into production.

Technical data:

Items Unit

FTM935F1214L

FTM1138F1315L

Vibrating feeder   GZD-960×3500 GZD-1100×3800

Impact crusher



1214

1315

Main belt conveyor   B800×8.5M B1000×9M
Discharging height of main belt conveyor mm 3200 3000
Side discharging belt conveyor (optional)   B800×8.5M B500×3.5M
Discharging height of side discharging belt conveyor mm 2800 3000
Motor power kw 250 300
Transportation length mm 11900 13300
Transportation width mm 3100 3100
Transportation height mm 3650 4500
Transportation weight t 50 59
Working length mm 12100 13500
Working width mm 3100 3100
Working height mm 4100 4800
