Max Feed Size 125 mm-1200mm
Capacity 10–2200t/h

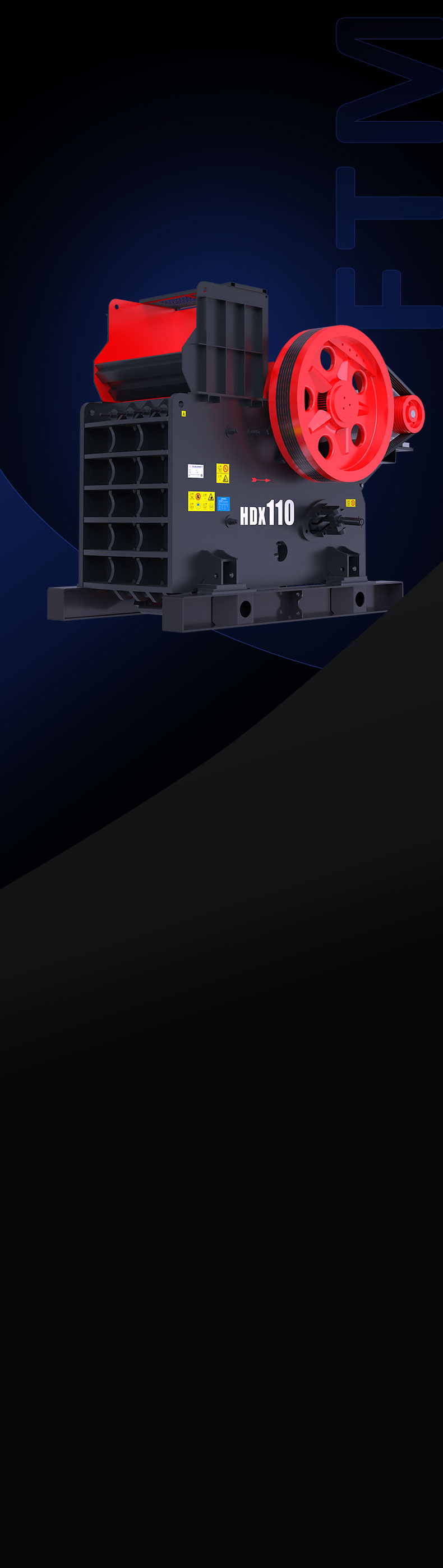

Jaw crusher is a commonly used primary crushing equipment, mainly used for crushing of large pieces of materials, and is widely used in mining, construction, metallurgy, chemical industry and other industries.
River pebbles
Granite
Basalt
Limestone
Pebble
Dolomite
More Than 200 Types Applicable Materials

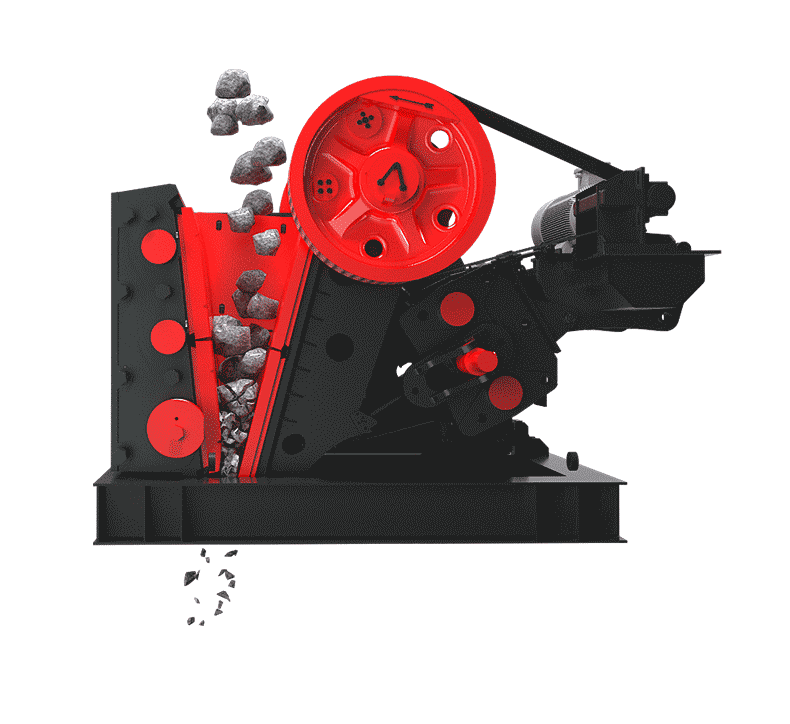

Jaw crusher is to crush and break the material through the moving jaw plates. The belt and the pulley are driven by the motor, and the movable jaw is fixed to reciprocate up and down through the action of the eccentric shaft. The moving track of the movable jaw is an arc with the mandrel as its center.

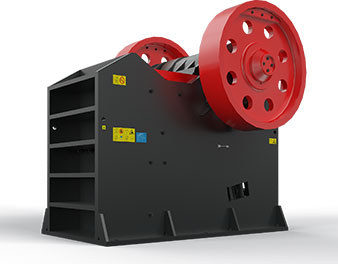

Feed size: ≤1,200 mm
Output size: 10–350 mm
Capacity: 1–1,200 t/h

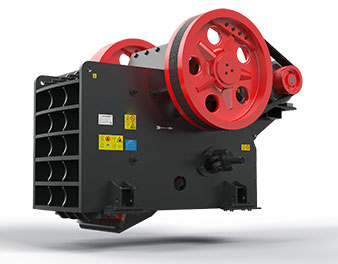

Feed size: ≤900 mm
Output size: 45–225 mm
Capacity: 50–750 t/h
Feed size: ≤1040 mm
Output size: 60–300 mm
Capacity: 105–1,280 t/h

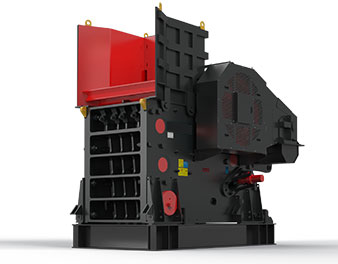

Feed size: ≤1,040 mm
Output size: 150–300 mm
Capacity: 105–1,160 t/h
Not sure how to choose?
Please contact us for assistance.
| Model | Max.Feeding size (mm) | Capacity (t/h) |
| PE 150×250 | 125 | 1-3 |
| PE 200×300 | 180 | 2-6 |
| PE 200×350 | 180 | 3-10 |
| PE 250×400 | 210 | 5-21 |
| PE 400×600 | 340 | 16-64 |
| PE 500×750 | 425 | 40-110 |
| PE 600×750 | 500 | 80-240 |
| PE 600×900 | 500 | 50-160 |
| PE 750×1060 | 630 | 110-320 |
| PE 900×1200 | 750 | 220-380 |
| PE 1200×1500 | 1020 | 400-1000 |
| PE 1500×1800 | 1200 | 500-1200 |
| PEX 150×750 | 120 | 8-25 |
| PEX 250×750 | 210 | 13-35 |
| PEX 250×1000 | 210 | 16-52 |
| PEX 250×1200 | 210 | 20-61 |
| PEX 300×1300 | 250 | 16-105 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size (mm) |
Max.Feeding size (mm) |
Capacity (t/h) |
| HD72(57) | 460×720 | 425 | 50-120 |
| HD86(69) | 580×860 | 500 | 60-280 |
| HD98(751) | 680×980 | 630 | 110-410 |
| HD110(912) | 850×1100 | 750 | 170-550 |
| HD125 | 950×1250 | 900 | 280-750 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Maximum Feeding size (mm) | Capacity (t/h) |
| CJ96 | 480 | 105-390 |
| CJ106 | 560 | 150-500 |
| CJ120 | 700 | 175-610 |
| CJ125 | 760 | 270-831 |
| CJ150 | 960 | 340-880 |
| CJ160 | 960 | 430-1145 |
| CJ200 | 1200 | 630-1435 |
| CJ1511 | 850 | 425-1195 |
| CJ1513 | 1040 | 530-1280 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feed opening (mm) |
Maximum feeding size (mm) |
Processing capacity (t/h) |
| HJ411 | 1045×840 | 700 | 150-565 |
| HJ412 | 1200×830 | 690 | 165-790 |
| HJ612 | 1200×1100 | 880 | 300-805 |
| HJ613 | 1300×1130 | 900 | 330-960 |
| HJ615 | 1500×1070 | 860 | 385-1085 |
| HJ815 | 1500×1300 | 1040 | 480-1160 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Please contact us for detailed parameters！
Contact UsSimple structure makes maintenance and repair convenient and reliable
Low suspension motion mechanism is adopted, with larger crushing ratio and high crushing efficiency
Advanced shock absorption and sound insulation technology is adopted to reduce noise pollution
High wear-resistant tooth plate is adopted, with long maintenance cycle and cost saving

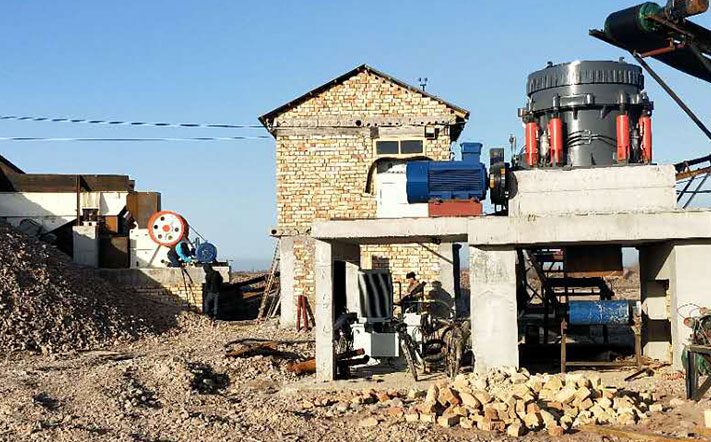

50t/h Gold Ore Crushing Project Site In South Africa

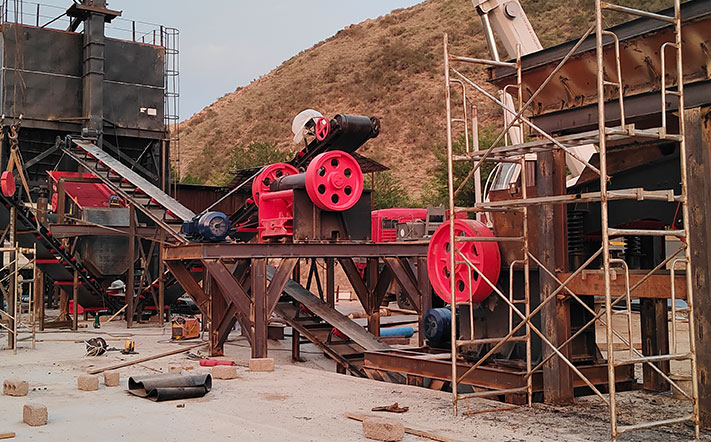

60t/h Concrete Crushing Plant In Zambia

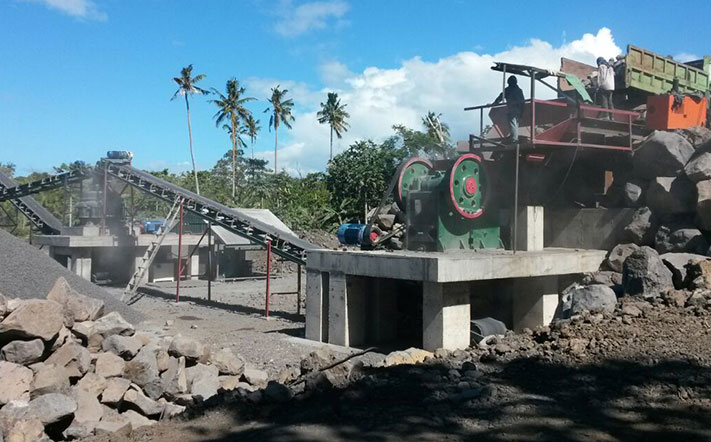

50t/h Aggregate Crushing Project Site In Kenya

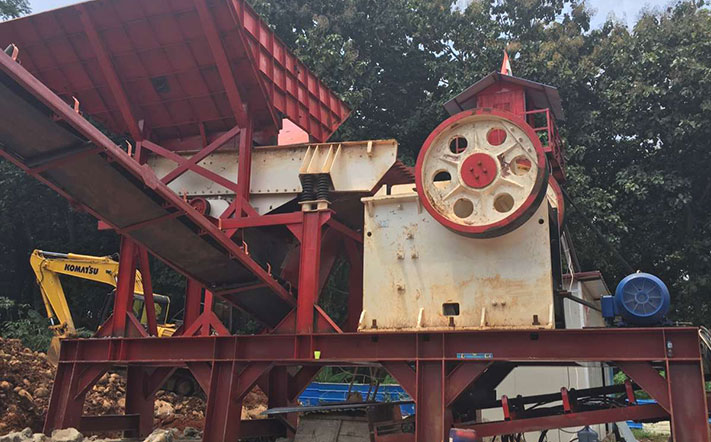

100t/h Quarry Stone Crushing Plant in Nigeria

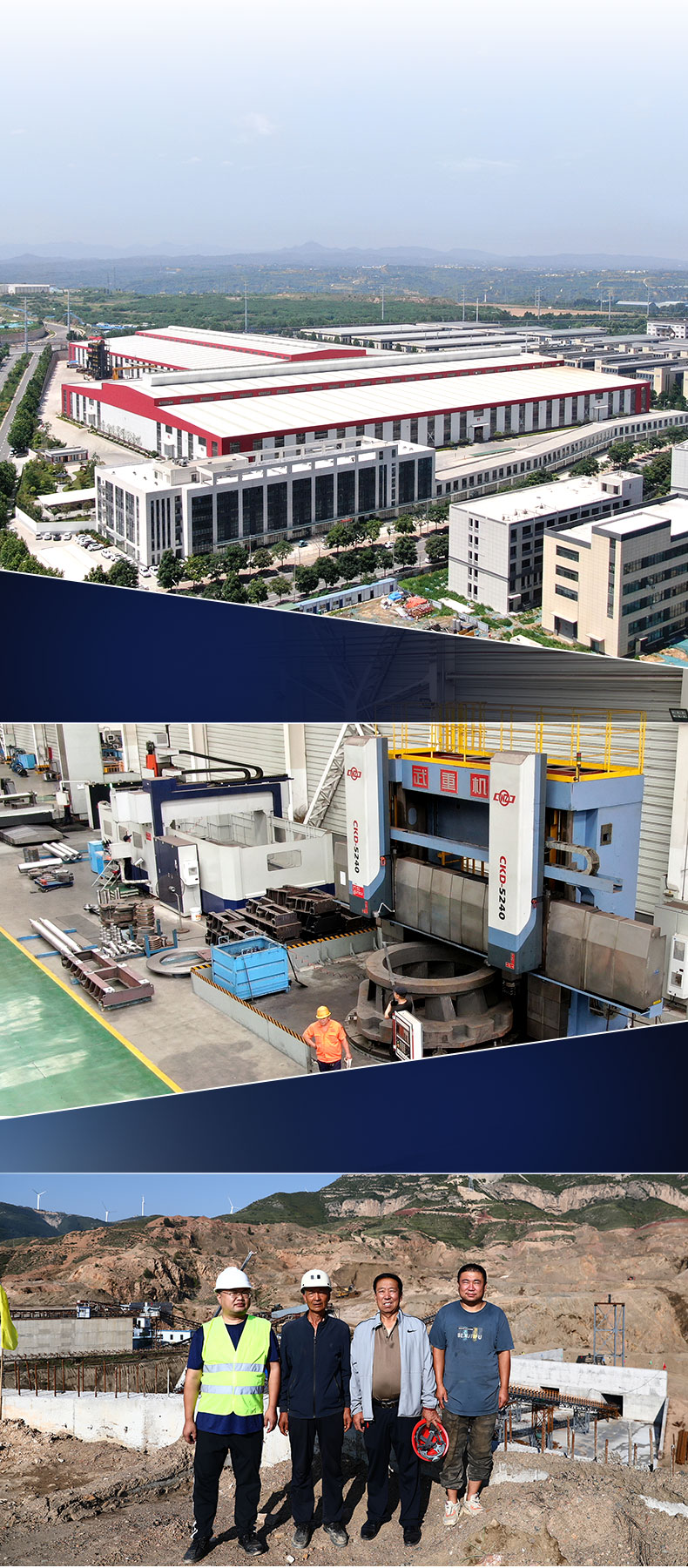

As leading stone crusher manufacturer in China, we have four large sized modern workshops, more than 500000 square meters.
