Cone Crusher

Cone Crusher

Diameter of crushing cone (mm): 600 - 2200

Max. Feeding size (mm): 35 - 300

Processing capacity (t/h): 12-23 to 59-1000

Motor power (kw): 30 - 280

Swing frequency of main shaft: 220 - 356

Note: Get a quote by clicking on the button below?

Overview:

Introduction to cone crusher

The cone crusher as a type of stone crushing machine is mainly used by the quarry, ore dressing plant and cement plant etc. Fote cone crushers own many advantages: high crushing efficiency, complex structure, low energy consumption and uniform product granularity.

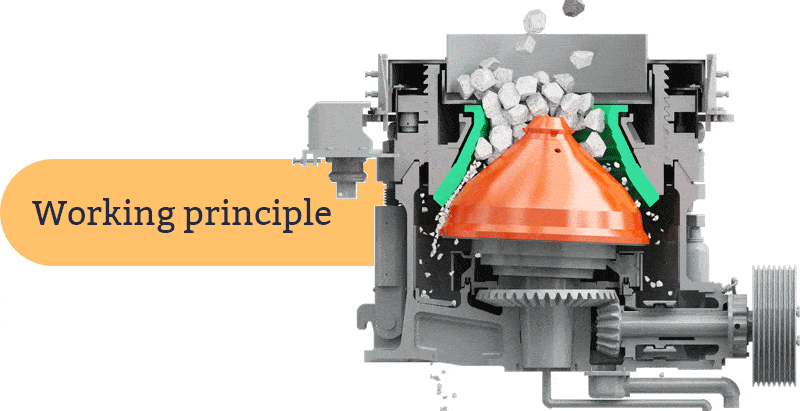

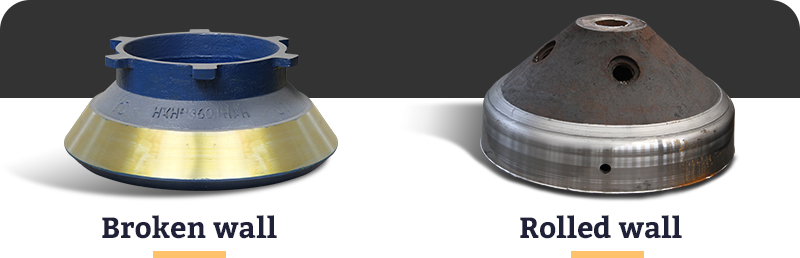

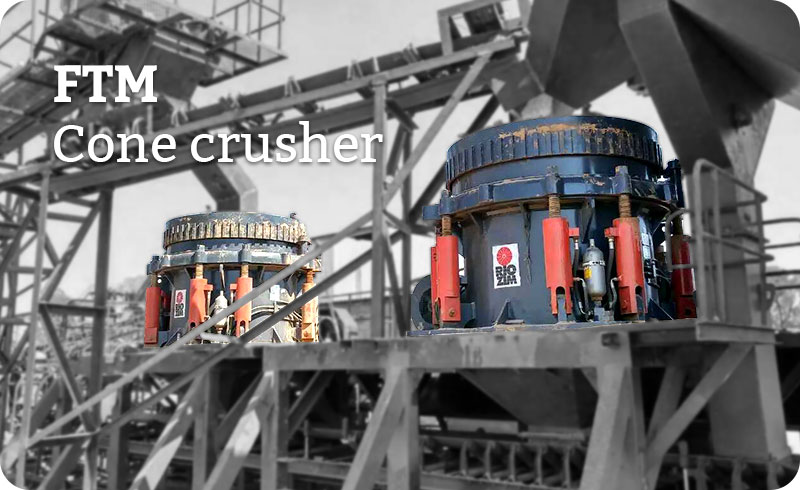

Working principle of cone crushers

When cone crushers work, its electric motor is driven to rotate by the eccentric bushing via the belt wheel, flexible coupling, transmission shaft and the cone device to circle around the fixed shaft. The crushing wall of cone crushers goes near or away from the roll surface of the adjusting sleeve. Materials in the crushing cavity are impacted, compressed and warped constantly, thus realizing the crushing process.

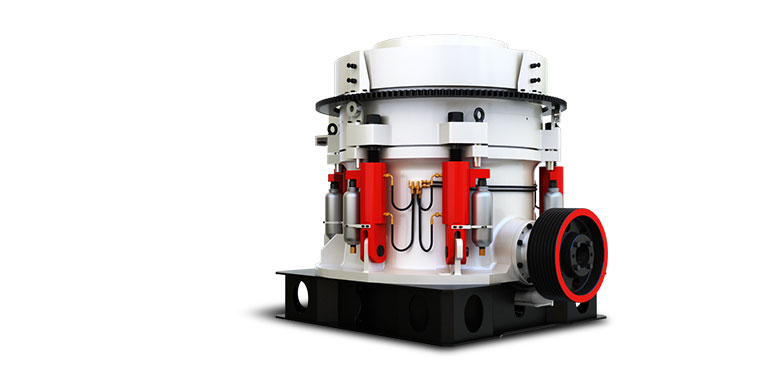

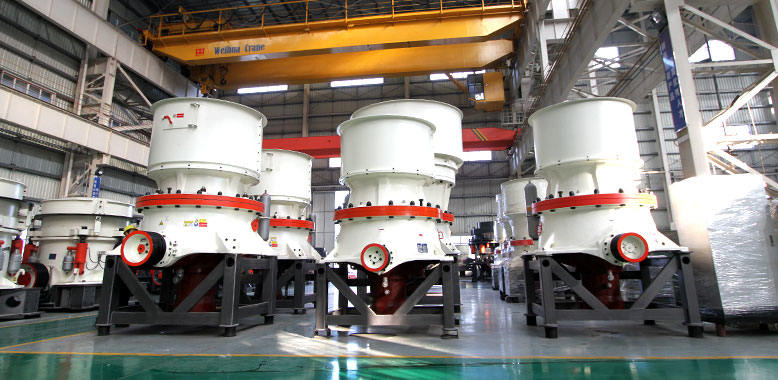

cone crusher

Cone Crusher

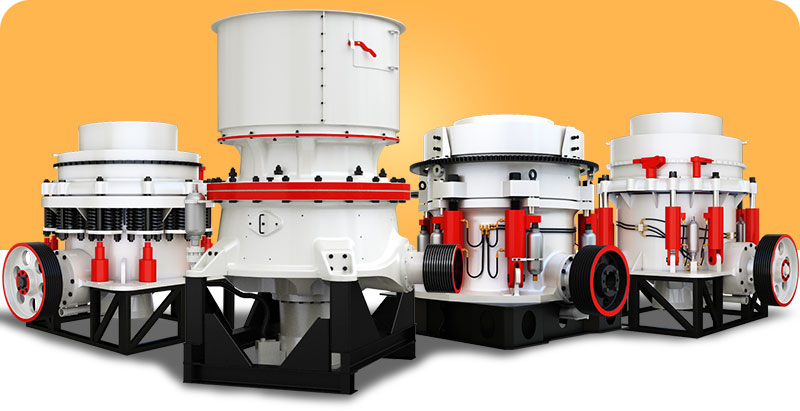

Spring cone crusher

The spring cone crusher as a traditional machine is also the first generation cone crusher with a wide range of application. The spring cone crusher owns many springs at its exterior with the purpose of protecting the crusher from damage when foreign matter that can't be crushed enters the crushing cavity.

Cone Crusher

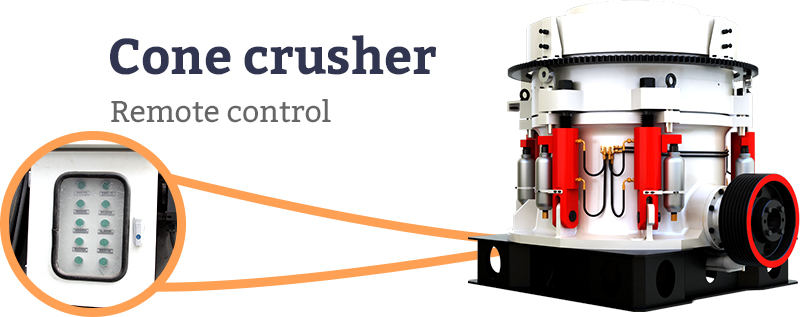

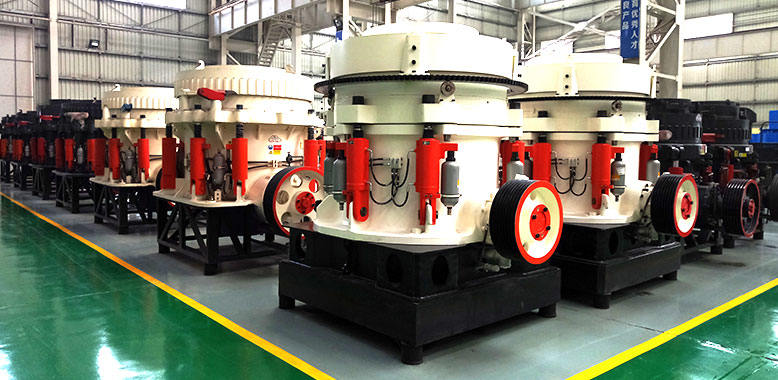

Hydraulic cone crusher

The hydraulic cone crusher is transformed from the spring cone crusher by adopting the hydraulic device to replace the springs. When foreign matter passes, hydraulic cone crusher will start up automatically and once the matter is discharged, the cone will be reset automatically. The throat of the hydraulic cone crusher will be restored and goes on working more intelligently and automatically. Hydraulic cone crusher is more convenient for maintenance.

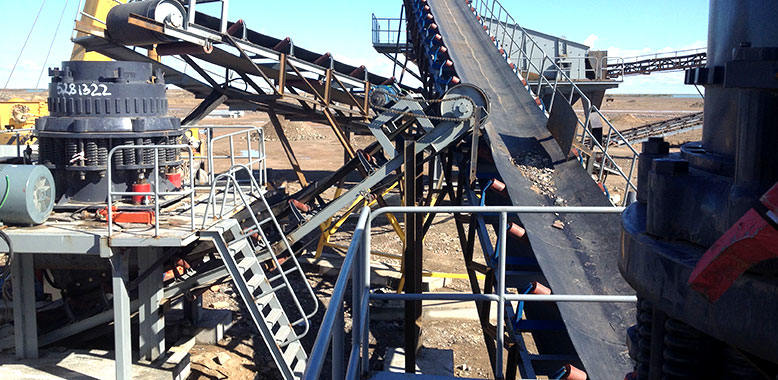

Application range of the cone crusher

The symons cone crusher can break minerals and stones with the crushing compressive strength of less than 250MPa. The symons cone crusher is applied to break hard and medium hard materials in the industrial departments of mining, metallurgy, construction materials and chemical engineering. The cone crusher is especially suitable for medium and fine crushing processes in the middle and small sized ore dressing plants. The symons cone crusher adopts the up pushing type structure of the jaw plate hanging on the shaft board, which makes it own features of high productivity, long service life of the toothed plate, low energy consumption and uniform product granularity. The cone crusher will gradually take place of the old type crusher.

Technical data:

Specifications Model Cavity Large end diameter of crushing cone
(mm)
Adjusting range of discharge opening
(mm)
Feed opening size of the open edge when recommending the min.discharge opening
(mm)
Max.feeding size
(mm)
Processing capacity
(m³/h)
Main motor power
(kw)
Weight
(kg)
Dimensions
(L×W×H)
(mm)
Φ600

PYFB-0607 Standard fine type 600 6-38 72 61 16-54 22 4490

2195×1540

×1651

PYFB-0609 Standard coarse type 9-38 109 93 18-68
PYFB-0610 Standard extremely coarse type 13-38 109 93 23-72
PYFB-0603 Short head fine type 3-13 35 30 9-36 4580
PYFD-0605 Short head coarse type 5-16 51 43 16-50
Φ900

PYFB-0910 Standard fine type 900 9-22 102 85 45-91 75 9980

2656×1636

×2241

PYFB-0917 Standard coarse type 13-38 175 150 59-163
PYFB-0918 Standard extremely coarse type 25-38 178 150 118-163
PYFD-0904 Short head fine type 3-13 41 35 27-90 10530
PYFD-0906 Short head medium type 3-16 76 65 27-100
PYFD-0907 Short head coarse type 6-19 102 85 59-129
Φ1300 PYFB-1313 Standard fine type 900 13-31 137 115 109-181 160 22460

2983×1866

×3156

PYFB-1321 Standard medium type 16-38 210 178 132-253
PYFB-1324 Standard coarse type 19-51 241 205 172-349
PYFB-1325 Standard extremely coarse type 25-51 259 220 236-358
PYFD-1306 Short head fine type 3-16 64 54 36-163 22590
PYFD-1308 Short head medium type 6-16 89 76 82-163
PYFD-1310 Short head coarse type 8-25 105 89 109-227
PYFD-1313 Short head extremely coarse type 16-25 133 113 209-236
Φ1600 PYFB-1620 Standard fine type 1676 16-38 209 178 181-327 250 43270

3641×2954

×3771

PYFB-1624 Standard medium type 22-51 241 205 258-417
PYFB-1626 Standard coarse type 25-64 269 228 299-635
PYFB-1636 Standard extremely coarse type 38-64 368 313 431-630
PYFD-1607 Short head fine type 5-13 70 60 90-209 43870
PYFD-1608 Short head medium type 6-19 89 76 136-281
PYFD-1613 Short head coarse type 20-25 133 113 190-336
PYFD-1614 Short head extremely coarse type 13-25 133 113 253-336
Φ2100 PYFB-2127 Standard fine type 2134 19-38 278 236 544-1034 400 86730

4631×3302

×4638

PYFB-2133 Standard medium type 25-51 334 284 862-1424
PYFB-2136 Standard coarse type 31-64 369 314 1125-1814
PYFB-2146 Standard extremely coarse type 38-64 460 391 1252-1941
PYFD-2110 Short head fine type 5-16 105 89 218-463 89500
PYFD-2113 Short head medium type 10-19 133 113 404-580
PYFD-2117 Short head coarse type 13-25 178 151 517-680
PYFD-2120 Short head extremely coarse type 16-25 203 172 580-744
