Crawler Mobile Jaw Crusher

Crawler Mobile Jaw Crusher

Vibrating feeder: ZSW-950×3800 ZSW-110×4200

Jaw crusher: PE600×900 PE750×1060

Main belt conveyor: B800×8.5M B1000×9M

Note: Welcome to contact us online or leave us a message.

Overview:

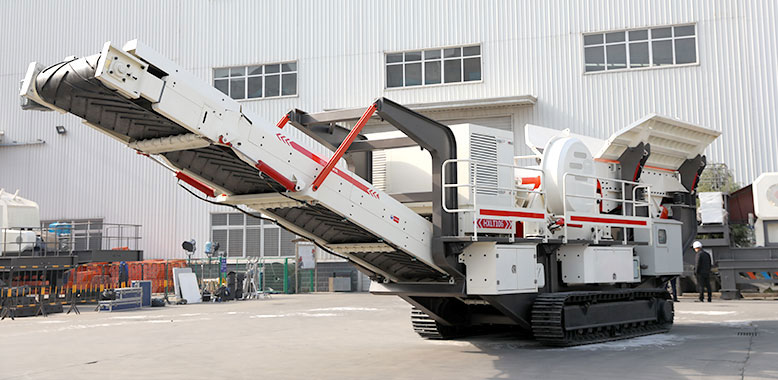

Crawler mobile crusher is a kind of new product independently researched and developed by Fote Heavy Machinery. 120Tph mobile crusher is a important type of it. Crawler mobile crusher is a kind of crawler-type mobile crusher moved by tyre with hydraulic utility drive.

Construction: jaw crusher, vibrating feeder, screening machine, belt conveyor, self-propelled tracked drive platform.

Crawler Mobile Jaw Crusher

What Are the Advantages of Crawler Mobile Crusher?

Crawler mobile crusher adopts self-driven with advanced technology and comprehensive function. It can directly into the working site without being installed to work, greatly reducing time and improving working efficiency.

Flexible Combination-coarse crushing and fine crushing: crawler-type mobile crusher can flexibly combined to coarse, medium and fine crushing system and can work solo to satisfy different project needs. The coarse crushing no matter for stone material factory, ore or recycling, mobile crushing station is recommended. Mobile crushing station equipped with hydraulic cone crusher can applied in medium and fine crushing with high productivity and final product quality.

What Fields Are Crawler Mobile Crusher Applied in?

According to the different requirements, crawler mobile jaw crusher could form "first crush then screen" and "first screen then crusher" process. Crushing stations can be combined according to the actual demand for coarse and fine crushing in a two-stage screening system, or bold light triple screening system, with a high degree of flexibility and can best meet the needs of different customers. At present, the device has by virtue of its large crushing ratio, high efficiency, stable performance and strong adaptability, flexibility and convenience advantages such as widely used in open pit mine opened, road and bridge construction, urban construction, mining and other projects, in particular stone used in highways, railways, hydroelectric projects and other liquidity operations.

Technical data:

Items FTM938E69L FTM1142E71L
Vibrating feeder ZSW-950×3800 ZSW-110×4200
Jaw crusher PE600×900 PE750×1060
Main belt conveyor B800×8.5M B1000×9M
Discharging height of main belt conveyor(mm) 3200 3500
Side-opening belt conveyor (optional) B450×3M B500×3.5M
Discharging height side-opening belt conveyor(mm) 2800 3100
Power of genset(kw) 180 200
Transportation length(mm) 12000 13600
Transportation width(mm) 3100 3100
Transportation height(mm) 3650 4500
Transportation weight(t) 43.5 59
Working length(mm) 12100 13500
Working width(mm) 3100 3100
Working height(mm) 4100 5100
