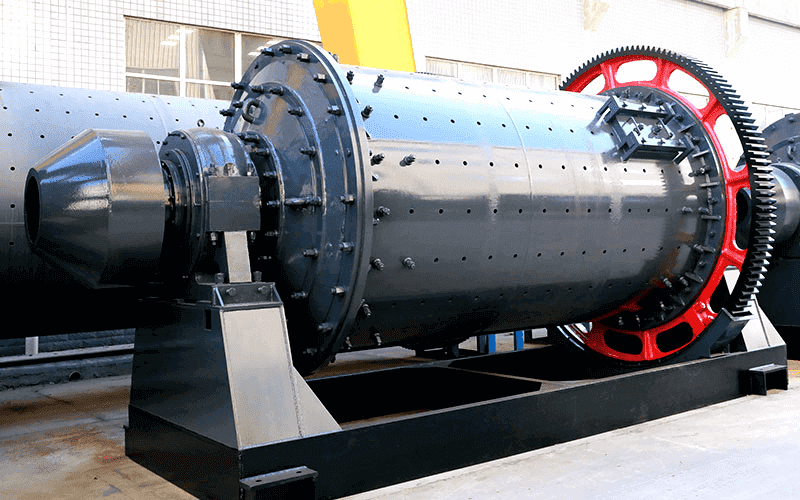

Ball Mill

The ball mill is a milling equipment used to grind various materials and produce ore pulp, which uses steel balls as the grinding medium.

The ball mill is a milling equipment used to grind various materials and produce ore pulp, which uses steel balls as the grinding medium. According to different grinding methods, ball mill can be divided into the dry and wet ways. In general, we adopt the wet grinding method for the ore dressing.

Welcome to the photo gallery of our products, then you will find the lightspot of various equipment, and enjoy yourself !

What is a ball mill grinding?

The ball mill equipment developed by FTM Machinery is a grinding machine, which uses steel balls as the grinding medium. And the ball mill grinder is mainly used for grinding cement, silicate products, new building materials, refractory materials, fertilizers, various ores and glass ceramics, etc. Besides, it is widely used in industries such as ore dressing, building materials, and chemicals. According to different grinding methods, the grinding process can be divided into dry and wet ways. In general, the minerers usually adopt the wet grinding method for the ore dressing.

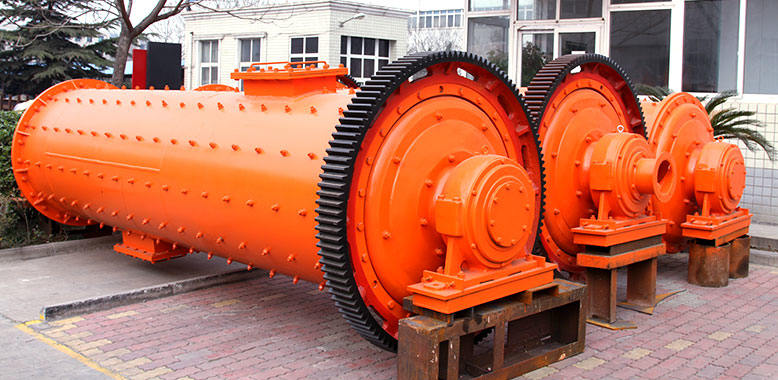

Ball mill

Ball mill grinding

What materials can be processed by ball mill grinder?

The ball mill machine can grind many kinds of materials like limestone, diabase, calcium carbonate, quartz stone, iron ore, copper ore, gold ore, grindable materials, non-metallic ore, non-flammable and explosive materials.

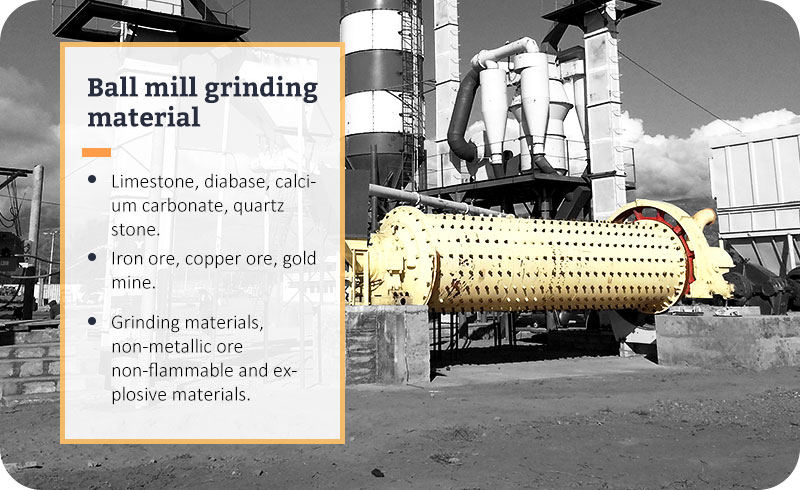

Ball mill grinding material

Ball mill grinding material

Why does ball mill grinder attract so many miners to invest?

Ball mills sold by Fote Machinery manufacturer are unique in the following aspects. The product ball mill grinding enjoys the feature of fine discharging size and it has the following advantages like easy to use and operate, has high working capacity, simple operation, and reliable performance.

According to the material and discharging methods, the FTM Machinery dry ball mill and the wet ball mill can be the best choices, because they both have good abrasion resistance, large crushing ratio, superior technology, the national processing standard, high processing precision, and good quality.

After the grinding process of the ball mill, the discharging fineness is usually 200 mesh, and the fineness can also be adjusted.

The wearing parts of the ball mill grinding mainly refer to the liner. The wear and service life of ball mill liners are related to the cost and production effect of the ball mill equipment. Then, how to distinguish the The pros and cons of the ball mill ceramic liner? First, look at the casting and smelting process of ball mill liners. Secondly, whether the quenching and tempering treatment of lining is qualified, and finally is the material of the lining.

At present, common materials of ball mill liners on the market are high chromium cast iron, low alloy wear resistant cast steel, high manganese steel materials, etc. These three kinds of liners have good wear resistance.

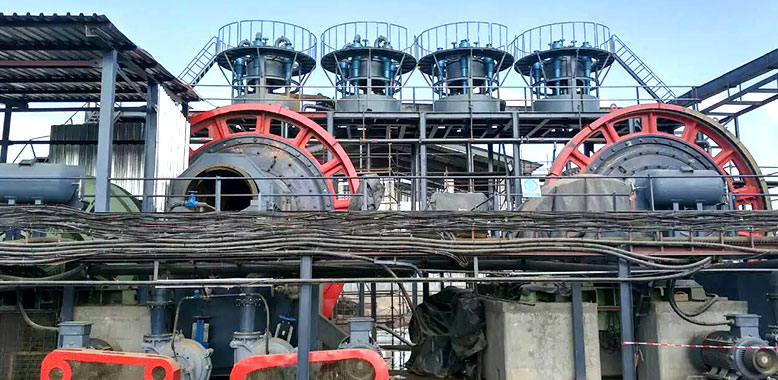

the wide range of ball mill machine application

Ball mill is one of the most imporatant machines in ore derssing plant. it can be used to process many materials including gold, copper, granite, quartz, pebble, limestones, etc. The final product of the gold ball mill is ieal and also always can be use on cosmetic.
According to the actual grinding materials, China FTM equips the ball mill with suitable grinding media and changes traditional surface contact to line contact, so that the discharging size is more even and the yield is higher. We know the grinding methods of ball mill, then how does a ball mill work? Here is the introdoction.

How does a ball mill work?

Working principle of ball mill crusher?

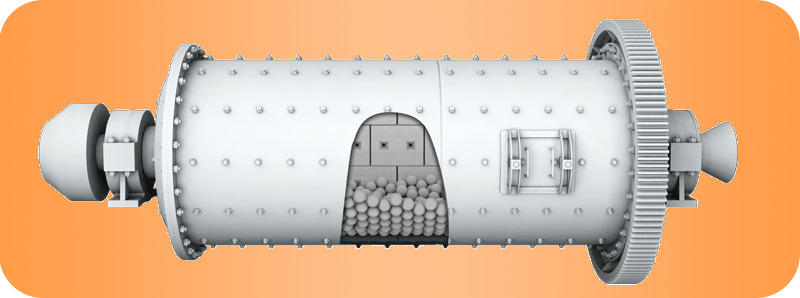

The working principle of ball mill

Ball mill working principle

Firstly, the materials enter the first chamber of the mill uniformly through the hollow shaft of the feeder. The ball mill liners have different kinds of steel balls. When the cylinder rotates, the FTM Machinery ball mill brings the materials and the balls to a certain height and then let them fall.After continuous impact on materials and balls, the materials are ground roughly in the first chamber.

Secondly, the materials enter the second chamber through a single-layer compartment board. And the chamber is lined with a flat lining plate, some steel balls inside, then Fote Machinery ball mill is grinding these materials further. Finally, the materials are ground into a fine powder.

Last but not least, the powder is discharged through the discharging raft to complete the grinding work.

What are the similarities and differences between the rod mill and the ball mill?

We all know that the ball mill is just the general terms of the different types of ball mill machine. It is mainly divided into the two knids: ball-type mill and rod-type ball mill.The ball mill and the rod mill are widely used in the dressing plant,then how to distinguish them?

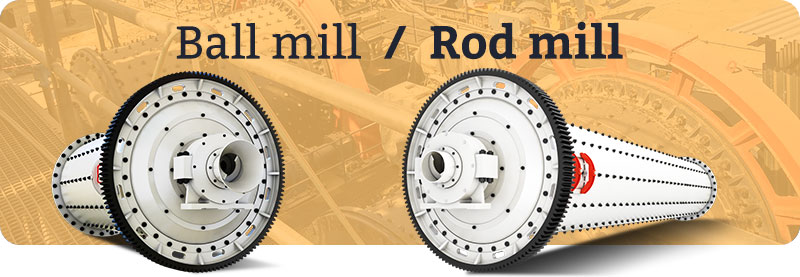

Ball mill vs Rod mill

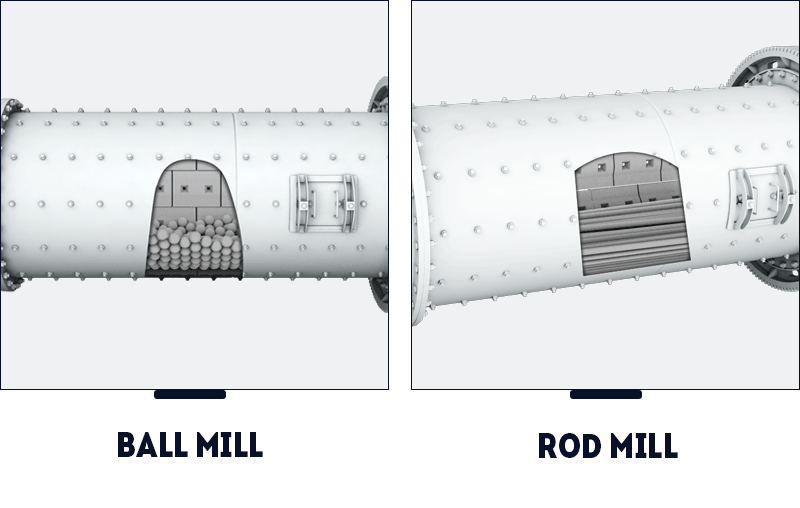

Ball mill vs Rod mill

Similarities

The working principle is basically the same. Regardless of the ball mill or the rod mill, when the cylinder rotates, the grinding media (ball or rod) installed in the cylinder body are lifted to a certain height, and then they are thrown at a certain linear velocity, so the grinding media causes some impact and crunch to materials of the cylinder body. Finally, the grinding work is finished.

Differences

Grinding media: The grinding media inside the cylinder are different. The ball mill media is the ball mill balls. The grinding media of rod mill is a steel section, and the ceramic ball mill is the ceramic ball, as is shown in the following picture.
The ball media

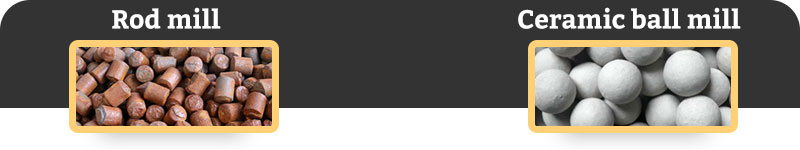

The rod mill media and ceramic ball mill media

Appearance ratio: Rod mill, whose appearance is the same as that of the industrial ball mill. The difference is that the ratios of cylinder shape are different. For example, the length ratio of the rod mill to the diameter is generally 1.5-2.0, and the inside lining plate on the end cap is the vertical plane. The length ratio of the barrel to the diameter of the ball mill is small, and in most cases, the ratio is only slightly greater than 1.

Different discharging methods

Among these ball mills, the most commonly used ball mills are lattice-type ball mill and overflow-type ball mill (named from the different discharging structure). While the rod mill does not use a grid plate for discharging, there are only two kinds: overflow-type and open-type. And the diameter of the hollow shaft in the discharging end is generally larger than that of a ball mill with the same specification.

Performance analysis: The characteristics of the rod mill are that the product is rough, but the particle size is even, and the coarse particles and the slime are little. Therefore, when the rod mill is working, the finished products are relatively light. Characteristic of the particle size is related to the condition of the rod-grinding ore. At the same time, the performance characteristics of ball mill are large production capacity, strong adaptability to materials, high fineness of materials and fine grain size. Besides, the ball mill is easy to grind finely, and significant in energy-saving, but the over-grinding phenomenon is serious.

Gold Ball Mill for Tailing Process

We have a customer called Mike Reynolds, in beaver Utah. And he has some dump material at his mine called horseshoe. Because the dump materials do not have high enough grade to get a good recovery, Mike called them as tailing. However, silver and gold metals are still inside and he wants to process the tailings into concentrates again.

This process is simple, by taking sand tailings into a feeder hopper, then relying to a conveyor belt. On the bottom of the feeder, there is a machine that can adjust the amount of sand that’s going onto the belt, so he knows exactly how much material fed into the mill site per hour and it can be adjusted accordingly if needing to go faster or slower.
gold ball mill plant for tailing processing

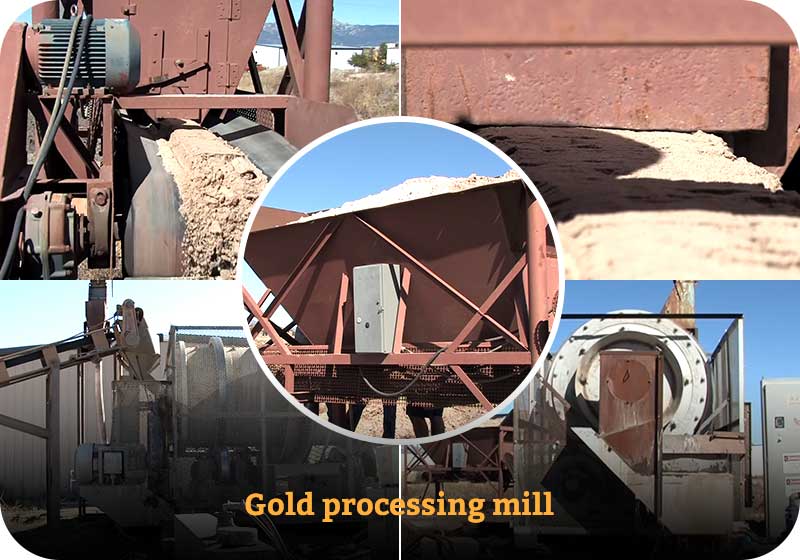

Gold Ball Mill Machine used for Processing Tailings

After the conveyor belt, sand tailings will going to the ball mill machine, which is a big drum that has steel balls inside about three-quarter-inch around. And every time when drums going around, milling balls fall on top of tailings and crush them into a finer mesh and liberates the metal from the rest tailings.

After the tailing goes through the ball milling machine, it is fed into the machine called shaking table. There are three tables stacked on tope of each other. They are approximately 8 feet by 20 feet, 17 feet high. The tables are used for gravity separation, no chemicals used here, shaking forth and back. Because the weight of gold metal is heavier than the weight of sand, sand waste will be one direction, the heavy metals go to the other direction. At the end, the heavy metals are trapped as concentrates.
Ball Mill Machine for Concentrates making

Ball Mill Machine for Concentrates making

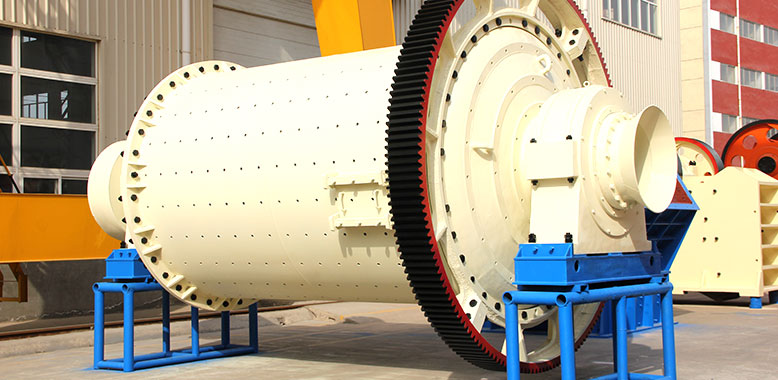

Cheap ball mill for sale

Ball mill customers and working principle video

As one of the well-known ball mill manufacturers in China, FTM Machinery has always been adhering to the purpose of “ integrity-basis and quality-first”, and striving to build the most advanced ore dressing equipment in China. We not only have industrial ball mill, but also manufacture the small ball mill. The small ball mill in our ball mill grinding factory is also for sale in South Africa, zimbabwe, india, philippines, etc. If you want to grind limestone or other materials with small capacity, the small ball mill is prepared for you. We sincerely welcome friends at home and abroad to come and choose the equipment you want.

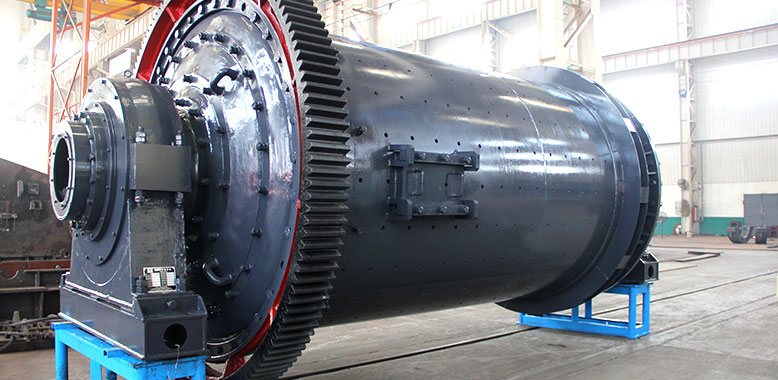

Ball Mill Technical Parameter

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
Model Feeding
size
(mm)
Capacity
(t/h)
Ф900×1800 <20 0.65-2
Ф900×3000 <20 1.1-3.5
Ф1200×2400 <25 1.5-4.8
Ф1200×3000 <25 1.6-5
Ф1200×4500 <25 1.6-5.8
Ф1500×3000 <25 2-5
Ф1500×4500 <25 3-6
Ф1500×5700 <25 3.5-6
Ф1830×3000 <25 4-10
Ф1830×4500 <25 4.5-12
Ф1830×6400 <25 6.5-15
Ф1830×7000 <25 7.5-17
Ф2100×3000 <25 6.5-36
Ф2100×4500 <25 8-43
Ф2100×7000 <25 12-48
Ф2200×4500 <25 9-45
Ф2200×6500 <25 14-26
Ф2200×7000 <25 15-28
Ф2200×7500 <25 15-30
Ф2400×3000 <25 7-50
Ф2400×4500 <25 8.5-60
Ф2700×4000 <25 22-80
Ф2700×4500 <25 26-90
Ф3200×4500 <25 As per process
conditions
Ф3600×4500 <25 As per process
conditions
Ф3600×6000 <25 As per process
conditions
Ф3600×8500 <25 45.8-256
Ф4000×5000 <25 45-208
Ф4000×6000 <25 65-248
Ф4000×6700 <25 75-252
Ф4500×6400 <25 84-306
Ф5030×6400 <25 98-386
Ф5030×8300 <25 118-500
Ф5500×8500 <25 148-615
