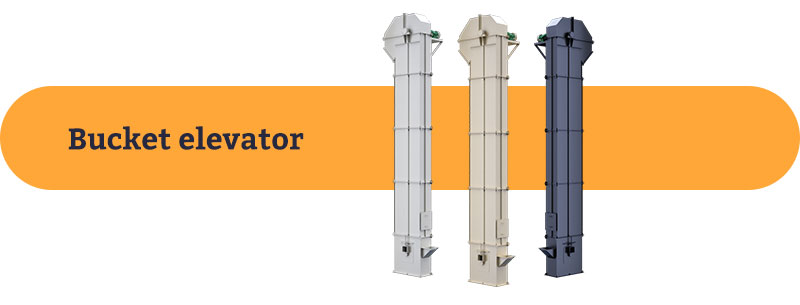

Bucket Elevator

The bucket elevator is used for the hoisting from low places to high places. The raw material is put into the hopper through the vibrating table, then the machine will convey the material continuously and automatically.

Bucket elevator conveyor is used to carry things from lower to higher. Materials are cast into hopper by vibrating stage and carried upwards automatically.

Welcome to the photo gallery of our products, then you will find the lightspot of various equipment, and enjoy yourself !

Introduction of bucket elevetor

The bucket elevator is used for the hoisting from low places to high places. The raw material is put into the hopper through the vibrating table, then the machine will convey the material continuously and automatically. It can carry much raw material from low to high. The hight can be adjusted according to the different speed of the bucket elevator.

The bucket elevator is a continuous conveying machine that uses a series of hoppers on uniform consolidation and endless traction members to vertically lift materials. It can be divided into three kinds of bucket elevators: chain bucket elevator, plate chain bucket elevator, and belt bucket elevator. The bucket elevator parts are upper casing, drive shaft parts, reducer, coupling shaft, motor and so on.

The elevator used in the field of mining is generally a bucket elevator, which is a piece of fixed conveying equipment. It is suitable for conveying the small powder, granular and abrasive material, such as coal, cement, stone, sand, clay, ore, etc.

The elevator’s traction mechanism is the circular chain, materials with higher temperature can also be conveyed. In addition to this, the bucket elevator can be widely used in various feed mills, flour mills, rice mills, oil factories, starch factories, grain warehouses, ports, and other bulk materials.

Well elevating conveyor/Elevator refers to the large machinery with high power and strong lifting ability. It completes the cargo transportation through the power mechanical drag. The steel wire rope is an indispensable part of crane machinery. The main varieties are phosphating coated steel wire rope, galvanized steel wire rope, stainless steel wire rope, smooth steel wire rope and so on.
Bucket

Universal bucket elevator

Characteristics of bucket elevator

1.Low drive powder. Adopt flow type feeding, induction unloading, and large volume hopper make it there is no feeding back and packing so that there is less reactive powder.

2.Large elevating range. Bucket elevator has little demand for materials’ type and characteristics except it cannot convey powder or small particle materials. And it can convey large particle materials; well sealed; less pollution.

3.Stable performance; advanced technology and processing method ensures the stable operation and the failure-free time is over 20,000 hours; high elevating height; stable operation makes it possible to elevate high.

4.Long life expectancy. Bucket elevator adopts flow feeding so that there is no need to use the hopper and there is no collision among the materials. Design of Fote bucket elevator ensures that there is less loss when feeding and unloading to decrease the abrasion.
Different

Different kinds of bucket elevator conveyors

Precautions of the bucket elevator conveyors

1.Before the start of bucket elevator, please check its the drive device. The inspection also includes the fastening of driving drum and the lower tensioning device and the bolt connection of drum; lubrication and tensioning conditions of the machine.

2.The elevator should be started without load, and can only be fed after the elevator runs normally. Similarly, please ensure that the internal materials of the equipment have been processed completely before parking. The on-load startup or on-load shutdown of the equipment will seriously damage the equipment itself and reduce its production efficiency.

Working principle of the bucket elevator

At work, the bucket elevator hopper scoops the materials from the storage below. As the conveyor belt or chain is lifted to the top, it bypasses the wheelset and turns down to pour the material into the receiving tank. Bucket elevator belt generally use rubber belt, installed in the driving drum and change the drum of the upper and lower.

Chain bucket elevator generally equipped with two parallel transmission chain, on or below a pair of driving sprocket wheel, under or above is a pair of diversion sprocket wheel. The bucket elevator is usually equipped with a casing to prevent dust from flying in the bucket elevator and reduce environmental pollution.

Price of the bucket elevator

Bucket elevator for sale. FTM Machinery, as the bucket elevator manufacturer. Bucket elevator price is quite reasonable and the quality is great. You can send us an e-mail or leave a message to get more detailed information about the equipment.

Bucket Elevator Technical Parameter

Technical parameters of ring chain bucket elevator
Specification Max.lifting Height
(m)
Conveying Capacity
(m³/h)
Max.size
(mm)
Pitch of Buckets
(mm)
Motor Prower
(kw)
TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45
Technical parameters of wire belt bucket elevator
Specification Max.lifting Height
(m)
Conveying Capacity
(m³/h)
Max.size
(mm)
Bucket Volume
(L)
Motor Power
(kw)
TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132
Plate chain bucket elevator
Specification Max.lifting Height
(m)
Max.lifting Capacity
(m³/h)
Percentage
Allowed(%)
Pitch
(mm)
Motor Power
(kw)
10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132
Technical parameters of ring chain bucket elevator
Specification Max.lifting Height
(m)
Conveying Capacity
(m³/h)
TH160 25 7-12
TH200 28 8-15
TH250 30 10-25
TH300 30 25-35
TH315 40 30-40
TH400 40 45-60
TH500 40 65-80
TH630 40 100-120
TH800 40 130-150
Technical parameters of wire belt bucket elevator
Specification Max. lifting Height
(m)
Convrying Capacity
(m³/h)
TDG160 80 34
TDG200 80 45
TDG250 80 71
TDG315 80 101
TDG400 80 158
TDG500 80 218
TDG630 80 345
TDG800 80 491
Plate chain bucket elevator
Specification Max.lifting Height
(m)
Max. lifting Capacity
(m³/h)
NE15 40 16
NE30 59 31
NE50 62 60
NE100 58 110
NE150 65 170
NE200 73 220
NE300 61 320
NE400 47 420
NE500 58 500
