Vertical roller mill is a modern grinding equipment widely used in cement, metallurgy, chemical, and non-metallic mineral industries. It integrates crushing, drying, grinding, and classifying into one unit, offering high efficiency and energy saving.
Vertical roller mill is a modern grinding equipment widely used in cement, metallurgy, chemical, and non-metallic mineral industries. It integrates crushing, drying, grinding, and classifying into one unit, offering high efficiency and energy saving.

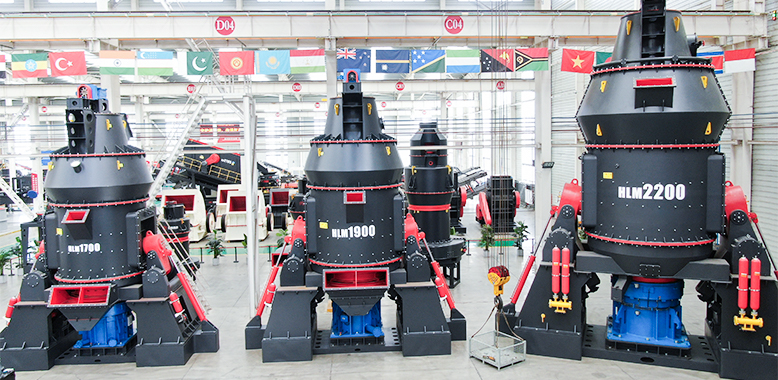

Welcome to the photo gallery of our products, then you will find the lightspot of various equipment, and enjoy yourself !

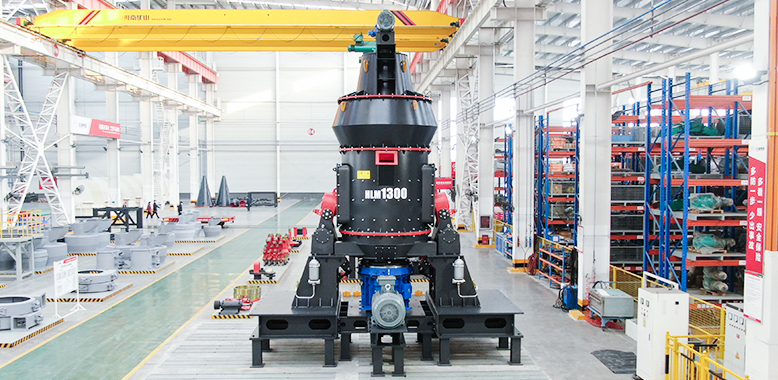

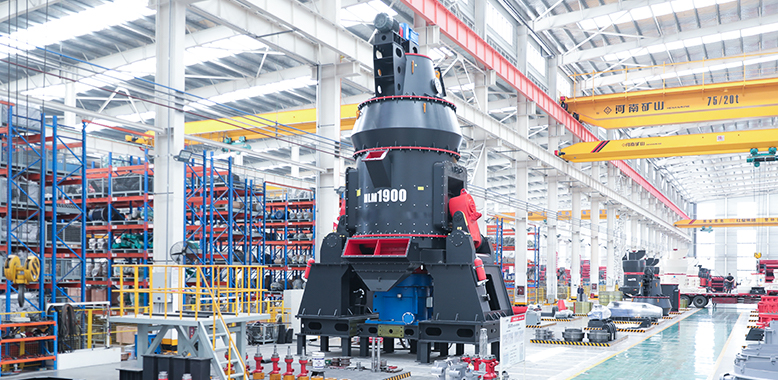

The vertical roller mill (VRM), also known as the vertical grinding mill, is a large-scale powder mill equipment developed by FTM Machinery using advanced powder grinding and external circulation technology.

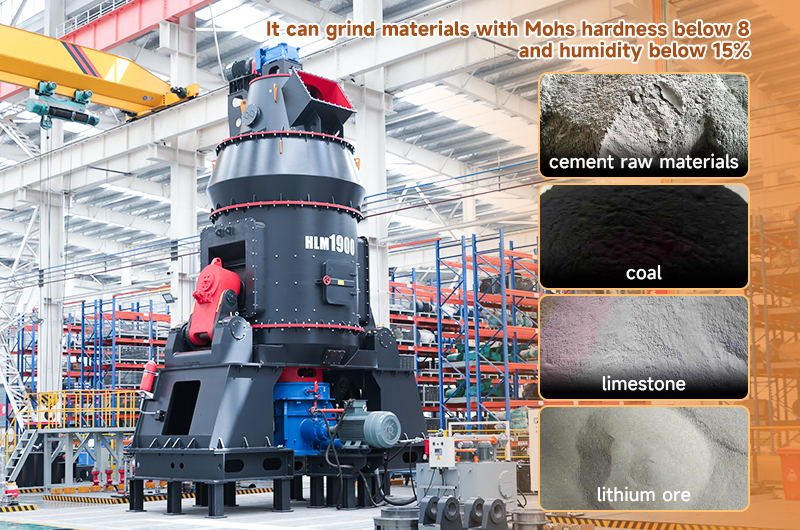

It can grind materials with Mohs hardness below 8 and humidity below 15%, such as cement raw materials, cement clinker, coal, slag, limestone, iron ore, gypsum, marble, phosphate ore, lithium ore, dolomite rock, kaolin clay, bentonite, talc, graphite, etc.

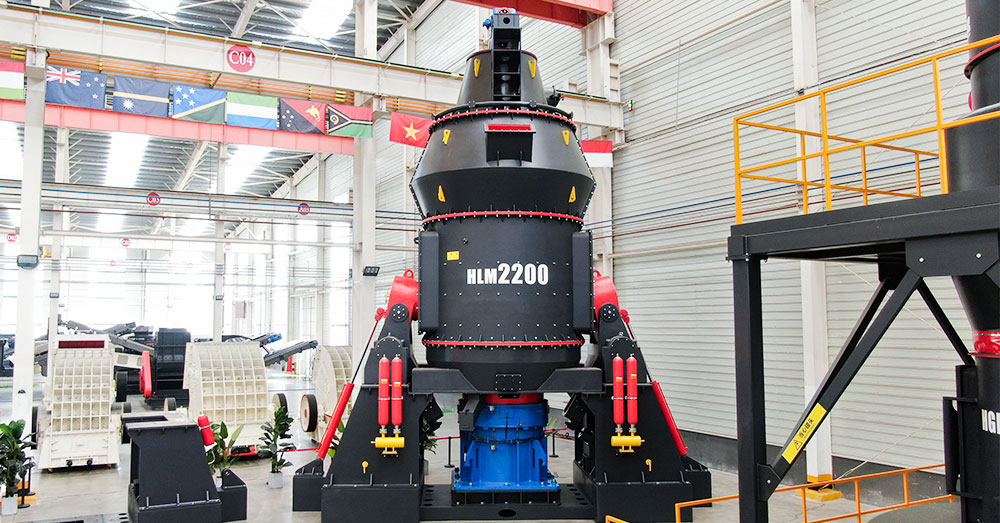

Vertical Roller Mill

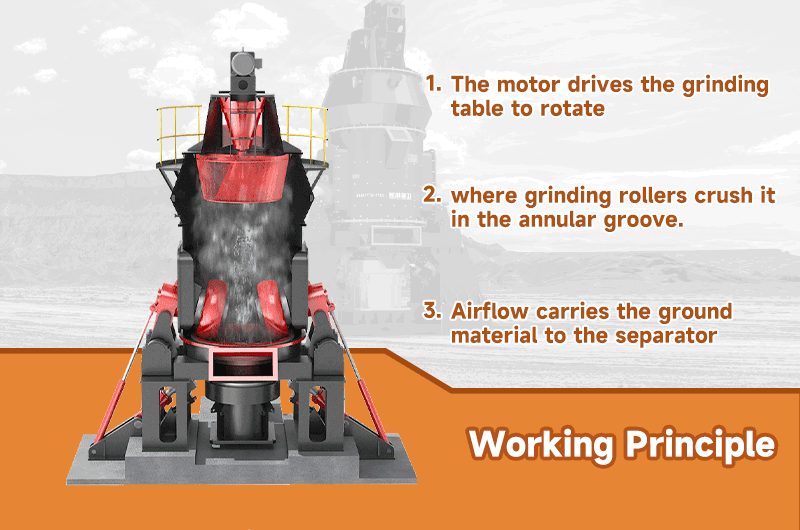

After crushing, the material enters the vertical mill, which grinds based on the material bed principle.
The motor drives the grinding table to rotate, and material falls from the feed inlet to the center. Hot air enters to dry the material by evaporating moisture. Centrifugal force moves the material to the edge, where grinding rollers crush it in the annular groove.
Working Principle of Vertical Roller Mill

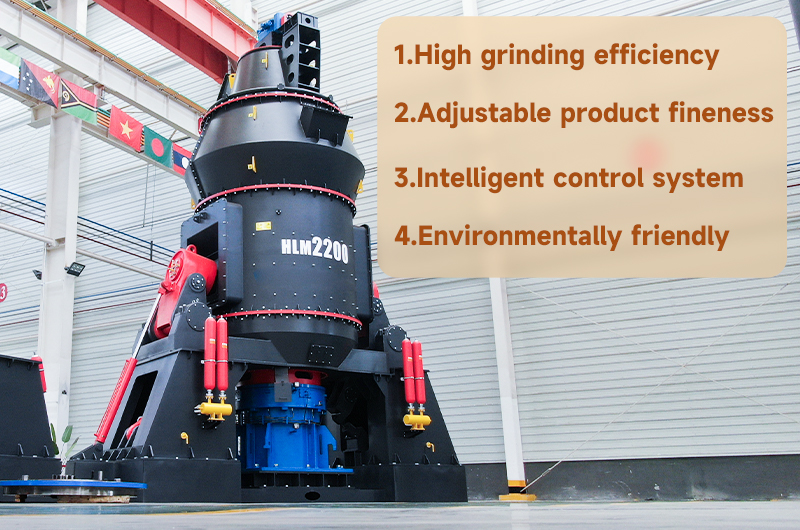

1.High grinding efficiency. Hydraulic pressure increases grinding force, improving efficiency. Capacity up to 420 tons/hour.
2.Adjustable product fineness. Flexible fineness from 80 to 600 mesh, meeting diverse production needs.
3.Intelligent control system. Easy operation, stable performance, and low failure rate.
4.Environmentally friendly. Full negative pressure sealing, dust removal rate up to 99.9%, energy consumption reduced by 30%-50%.

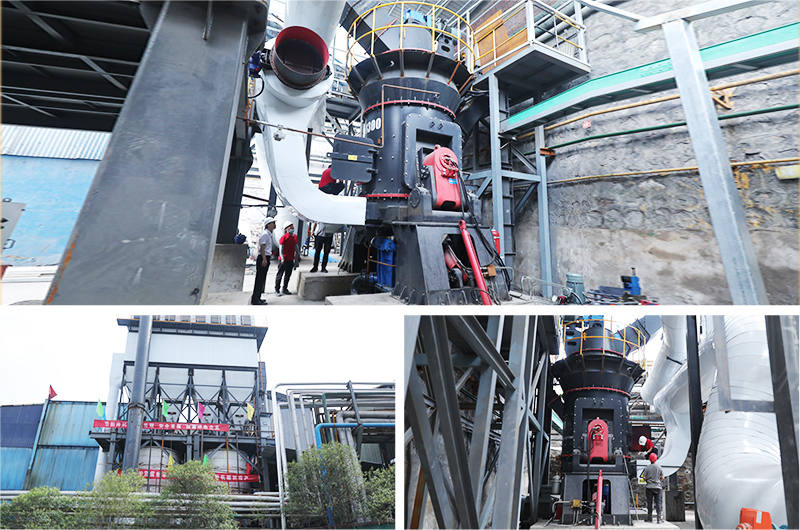

Material | Anthracite |
Capacity | 15 T/H |
Input Size | ≤40 mm |
Output Size | 200 mesh |
Equipment | HLM1900M Vertical Mill, Jaw Crusher, Belt Conveyor, Feeder, Drying System |
Customer Feedback:
Fote customized a vertical mill solution with a drying system for us, which effectively solved the problem of high moisture in the raw material. The entire system runs stably, is energy-efficient and environmentally friendly.

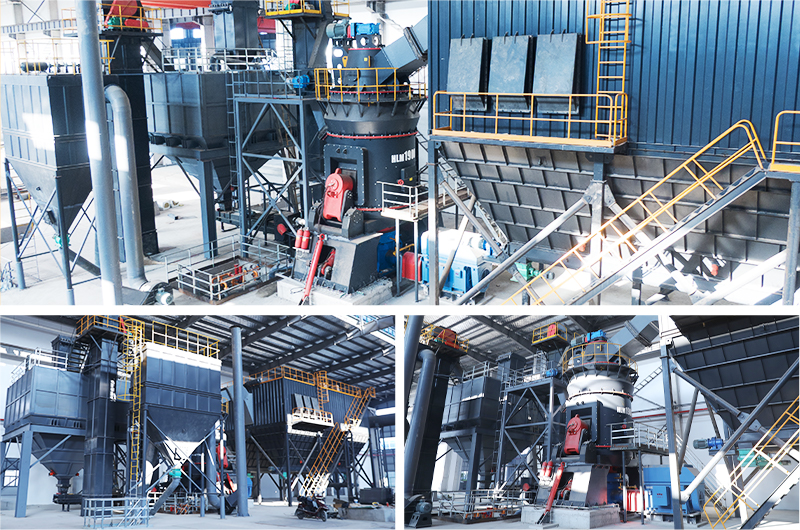

Material | Quartz |
Capacity | 120 T/H |
Input Size | ≤20 mm |
Output Size | 325 mesh |
Equipment | HLM1900K Vertical Mill, Jaw Crusher, Cone Crusher, Dust Collector, Classifier |
Customer Feedback:
Since the project was put into operation, the vertical mill has been running smoothly. The produced quartz sand features high purity and uniform particle size, earning recognition from clients in the glass and photovoltaic industries.
FTM Machinery is a famous Vertical Roller Mill manufacturer in China. There are limestone grinding mill, gypsum grinding mill, calcium carbonate grinding mill, and clinker grinding in Fote. The products all have great quality, perfect service and reasonable price. You can send an e-mail or leave a message to know more about the machine.
Specifications | Capacity(t/h) | Pulverized coal fineness | The raw coal moisture | Pulverized coal moisture | Main motor power(kW) |
HLM1200M | 6—10 | R0.08=5-15% | ≤15% | ≤1-5% | 110-132 |
HLM1300M | 10-15 | 160—200 | |||
HLM1500M | 15—20 | 220—280 | |||
HLM1700M | 20-30 | 280-355 | |||
HLM1900M | 26-35 | 355—450 | |||
HLM2200M | 35-50 | 450—560 | |||
HLM2400M | 45-55 | 560-710 | |||
HLM2800M | 60-80 | 900—1120 |
Note:Raw coal HGl≥55
Specifications | Capacity(t/h) | The finished product fineness | The raw material moisture | The finished product moisture | Main motor power(kW) |
HLM1300K | 10-40 | 0.84-0.37mm (20-400 mesh) | ≤15% | ≤1% | 200 |
HLM1500K | 13-50 | 280 | |||
HLM1700K | 18-70 | 400 | |||
HLM1900K | 20-85 | 500 | |||
HLM2200K | 35-135 | 800-900 | |||
HLM2400K | 40-160 | 900-1120 | |||
HLM2800K | 50-200 | 1120-1250 | |||
HLM3400K | 70-260 | 1800-2000 | |||
HLM3700K | 90-320 | 2500-2800 |
Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t
Specifications | Capacity(t/h) | Specific surface area | Slag moisture | Mineral moisture | Main motor power(kW) |
HLM17-2N | 6-10 | ≥420㎡/kg | ≤15% | ≤1% | 200-220 |
HLM19-2N | 8-13 | 280-315 | |||
HLM21-2N | 10-15 | 400-450 | |||
HLM24-2N | 12-18 | 500-560 | |||
HLM28-2N | 22-30 | 900-1000 | |||
HLM35-3N | 55-70 | 1800-2000 | |||
HLM42-4N | 70-100 | 2500-2800 | |||
HLM46-4N | 85-135 | 3150-3800 | |||
HLM53-4N | 130-165 | 4500-5000 |
Note: Slag grindability (Bond) index ≤25kw/t; Steel slag grindability (Bond) index ≤30kw/t; The production of steel slag is reduced by about 30-40% when it is ground.
Specifications | Capacity(t/h) | Specific surface area | The raw material moisture | The finished product moisture | Main motor power(kW) |
HLM19S | 8-13 | ≥380㎡/kg | ≤5% | ≤1% | 280-315 |
HLM21S | 11-18 | 400-450 | |||
HLM24S | 15-20 | 500-560 | |||
HLM28S | 28-35 | 900-1000 | |||
HLM35S | 70-80 | 1800-2000 | |||
HLM42S | 95-110 | 2500-2800 | |||
HLM46S | 130-150 | 3150-3800 | |||
HLM53S | 160-200 | 4500-5000 |
Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t
Specifications | Capacity(t/h) | Main motor power(kW) |
HLM1200M | 6—10 | 110-132 |
HLM1300M | 10-15 | 160—200 |
HLM1500M | 15—20 | 220—280 |
HLM1700M | 20-30 | 280-355 |
HLM1900M | 26-35 | 355—450 |
HLM2200M | 35-50 | 450—560 |
HLM2400M | 45-55 | 560-710 |
HLM2800M | 60-80 | 900—1120 |
Note:Raw coal HGl≥55
Specifications | Capacity(t/h) | Main motor power(kW) |
HLM1300K | 10-40 | 200 |
HLM1500K | 13-50 | 280 |
HLM1700K | 18-70 | 400 |
HLM1900K | 20-85 | 500 |
HLM2200K | 35-135 | 800-900 |
HLM2400K | 40-160 | 900-1120 |
HLM2800K | 50-200 | 1120-1250 |
HLM3400K | 70-260 | 1800-2000 |
HLM3700K | 90-320 | 2500-2800 |
Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t
Specifications | Capacity(t/h) | Main motor power(kW) |
HLM17-2N | 6-10 | 200-220 |
HLM19-2N | 8-13 | 280-315 |
HLM21-2N | 10-15 | 400-450 |
HLM24-2N | 12-18 | 500-560 |
HLM28-2N | 22-30 | 900-1000 |
HLM35-3N | 55-70 | 1800-2000 |
HLM42-4N | 70-100 | 2500-2800 |
HLM46-4N | 85-135 | 3150-3800 |
HLM53-4N | 130-165 | 4500-5000 |
Note: Slag grindability (Bond) index ≤25kw/t; Steel slag grindability (Bond) index ≤30kw/t; The production of steel slag is reduced by about 30-40% when it is ground.
Specifications | Capacity(t/h) | Main motor power(kW) |
HLM19S | 8-13 | 280-315 |
HLM21S | 11-18 | 400-450 |
HLM24S | 15-20 | 500-560 |
HLM28S | 28-35 | 900-1000 |
HLM35S | 70-80 | 1800-2000 |
HLM42S | 95-110 | 2500-2800 |
HLM46S | 130-150 | 3150-3800 |
HLM53S | 160-200 | 4500-5000 |
Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t
