What is the Difference Between a Jaw Crusher and a Cone Crusher?

As we all know, both the jaw crusher and the cone crusher are significant machines which can be used as the primary and secondary crusher. What is your best choice between a jaw crusher and a cone crusher?

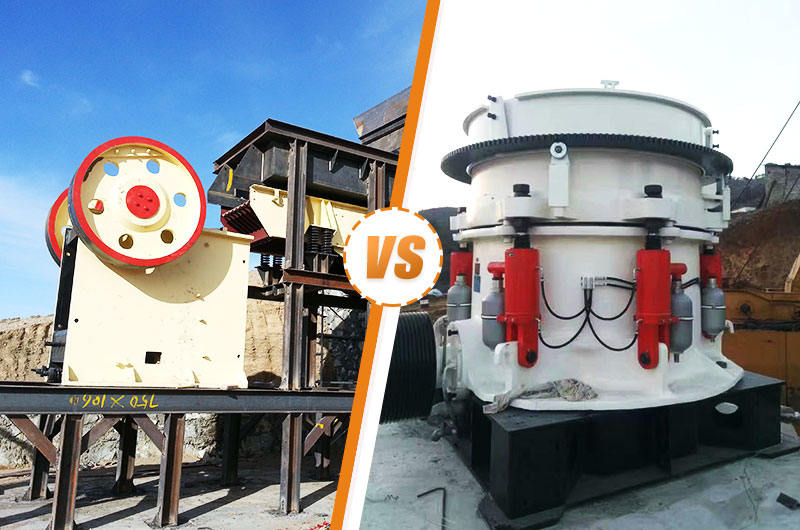

jaw crusher vs cone crusher

jaw rock crushers and cone crusher picture

Choose a Jaw crusher or a Cone Crusher?

Let’s begin with a comparative analysis between the jaw crusher and the cone crusher from the following points: the degree of crushing, material hardness, material components, max. feeding size, processing capacity and price.

TypesConditions Jaw Crusher Cone Crusher
Degree of crushing coarse or medium crushing medium and fine crushing
Material hardness medium harder
Material components sticky No sticky
Max. feeding size 125-1200mm 35-560mm
Processing capacity 1-2200t/h 12-2181t/h
Price (refer to Alibaba) $1,000-100,000 /Set $4,500-600,000 /Set

The price of the cone crusher is much more expensive and its capacity is stronger than a jaw crusher of the same gape. For example, if your material is 250mm, you want better processing capacity with an adequate budget, you’d better choose the cone crusher because its capacity can be 85-170 t/h, while jaw crusher only 16-105 t/h.
If you weigh gape more than capacity, then the jaw crusher will probably be more economical. A useful relationship, which is often used in plant design, is that given by Taggart (1945): If ton/hr<161.7 (gape in meters), use a jaw crusher. Conversely, use a cone crusher.

What is the Difference in the Using Process?

In the course of using, the two are of course different. Let’s discuss from the following aspects:

Installation & Maintenance

Because the jaw crusher is small in volume, it is convenient to install and the infrastructure site required is also small, which can save you a lot of installation and site costs. The maintenance is more easily accomplished on the jaw crusher and maintenance costs of a jaw crusher are lower than a cone crusher generally. The cone crusher with equivalent output is about twice as heavy as the jaw crusher, and its structure is more complex, so the cost of civil engineering and post-maintenance is relatively higher.

Wear Parts

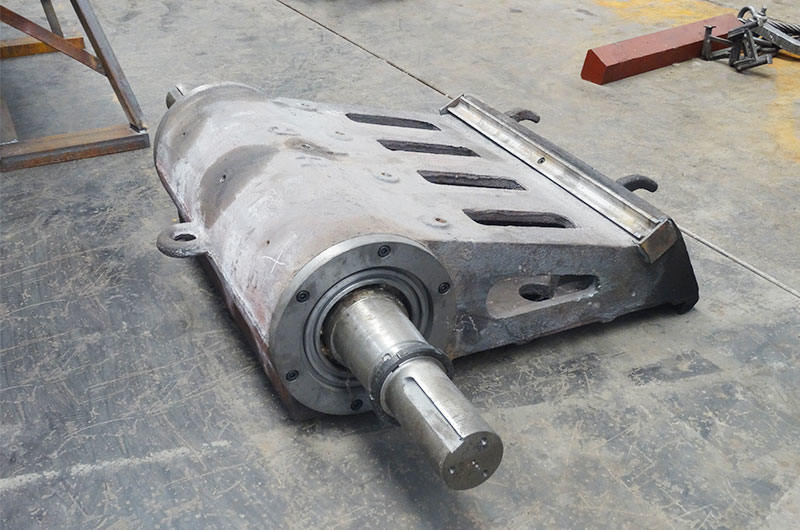

wear part of the jaw crusher

wear parts of jaw crushers

The jaw crusher is easier to wear compared with the cone crusher for several reasons, some of which will be presented in the following table. However, the cone crusher is more difficult to be adjusted due to its complex design and the cost of replacing the wear parts is much higher.

TypesConditions Jaw Crusher Cone Crusher
Wear parts 1.moving jaw
2.fixed jaw
1.broken wall
2.rolling ace tabular wall
Service life shorter longer
Reasons for different service life 1.extrusion force
2.sharp or triangular needle-shaped particles
1.laminating crushing
2.uniform finished products
Price of replacing parts
(refer to Alibaba)
$ 1-10 $ 100

Environmental Protection

When energy is introduced to rock, ore or mineral crystals will generate a dust emission. The coarse jaw crusher has a large amount of dust emission, while the cone crusher is much better. Compared with the cone crusher, the sealing of the jaw crusher is relatively poor. The cone crusher spreads less dust with a deep crushing cavity. What’s more, the materials of jaw crushers are usually larger or sticky, which increases its dust pollution.

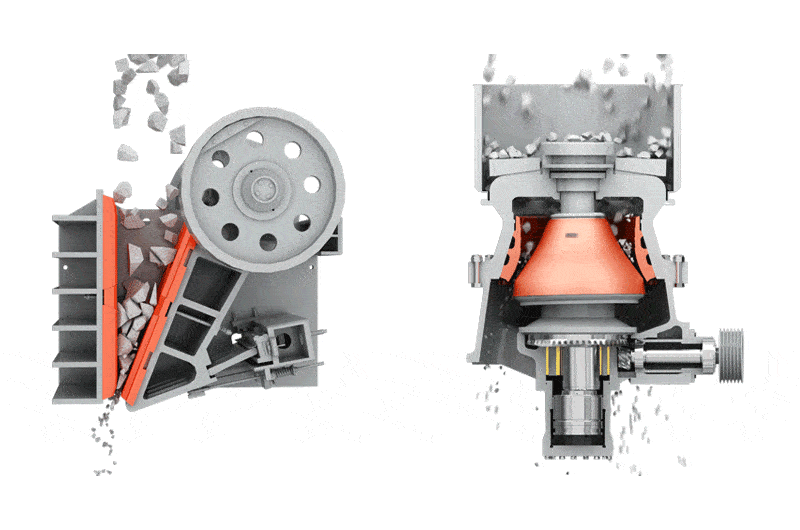

inner structures of jaw crushers and  cone crushers

Different inner structures cause different environmental protecting effects

If you want to achieve the environmental protection requirement, you’d better install dust removal devices on the crushers which will provide you a cleaner operating environment.

Examples of Choosing This Two Kind of Machines

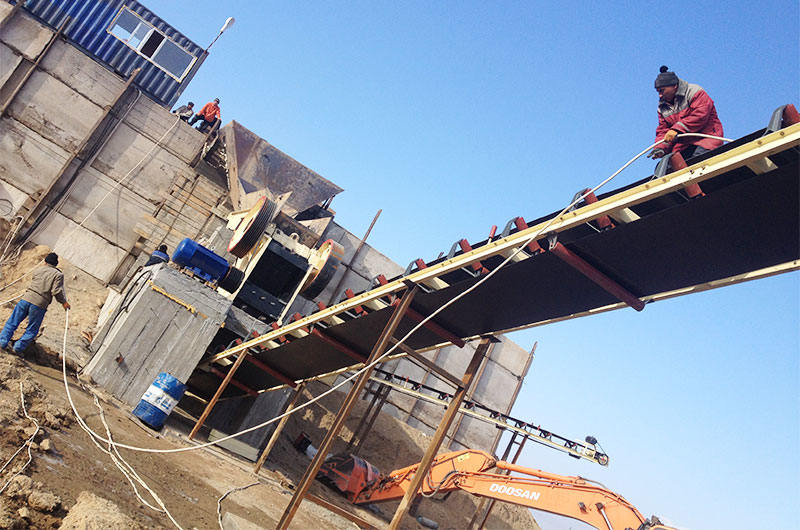

jaw crusher examples

A company in India specializes in smelting aluminum, so the crushing process of aluminum ore can not be avoided for them. The Moh’s hardness of the aluminum ore is between 2-3 and the particle size is relatively large, about 600mm, so they selected the jaw crusher after the on-site inspection of Fote Heavy Machinery, which is mainly used to achieve the crushing of the aluminum ore. After use, they said that it is cost-effective with small floor space and low investment, and the quality of the products produced is reliable, which brings considerable economic benefits to them.

stone crushing plant working video

Burke is a purchasing manager of a company from Zambia, which mainly supplies stone and mechanical sand to the mixing plant. Their required discharge size is 5-20mm and output 50-800t/h. We recommend Fote jaw crusher as primary crushing and cone crusher as secondary crushing for Burke. He has inspected the crushing equipment for nearly half a year and was finally attracted by the powerful processing capability and sophisticated technology of Fote. He finally purchased our crushers, which have been installed and commissioned, and the output and grain type have reached his requirements. He has planned to establish a long-term relationship with Fote.
