Mobile Impact Crusher

Mobile impact crushing plant is a small production line which integrating feeder, impact crusher, screen and convey.

Tyre mobile impact crusher plant integrates feeder, impact crusher, screen,and conveyor together. Henan Fote Machinery Company introduced advantaged technology to manufacture a type mobile crusher. High-quality chrome plate hammer, wear-resistant counterattack, large crushing ratio, and the advantages of impact crusher itself make it success in mining.

Welcome to the photo gallery of our products, then you will find the lightspot of various equipment, and enjoy yourself !

Features of the tyre mobile impact crusher

1.It integrates feeder, impact crusher, screen, and conveyor together, which reduce the consumption of raw materials and working time. Further more, it can reduce cost a lot.

2.Fote Machiery adapts mature technology to manufacturer the tyre mobile impact crusher with reliable performance. Besides, it is easy to maintain.

3.It can crush the stone at site flexibly.

4.The tyre mobile impact crusher is adaptable and flexible. It not only can work independently, but also can work with unit joint.

5.Both Oil and electricity can drive it to work. It is equipped with the motor with powerful horsepower, which makes it possible that the tyre mobile impact crusher still can operate even under the situation of no electricity in remote areas.

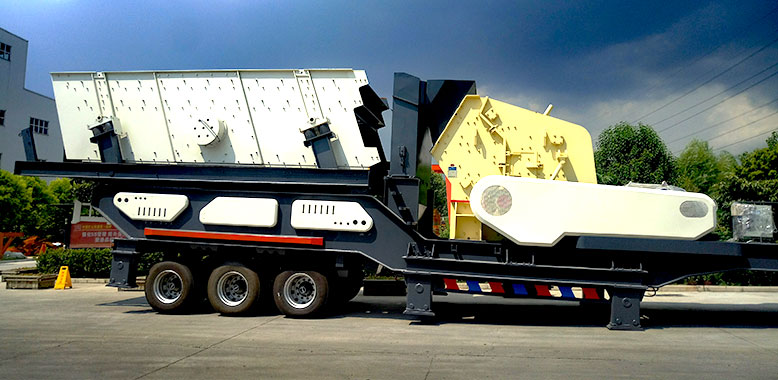

Tyre mobile impact crusher

Tyre mobile impact crusher

Overall design

The tyre mobile impact crusher has a high chassis and weights a little. The width of the its body is smaller than that of the g semi-trailer. Each module is loosely arranged in space.

Mobility

Tire-type mobile impact crusher station can move freely and easily, steer in situ, transport, climb under the traction of truck. Because of the tire walking mode, it does not damage the road surface and is convenient to transport for long distance site.

Stability

Compared with the fixed crushing production line, the stability of mobile crushing station has a certain impact on working efficiency of the equipment.When the tyre mobile impact crusher is working, it needs the hydraulic legs under the frame to improve its stability.

Besides, the tyre mobile impact crusher have some requirements on the crushing site. If the crushing site’s land is the hardy rock, the mobile crusher will not be sink and work efficiently.On the contrary, the equipment will have poor stability and low efficiency.

Thus, even the tyre mpbile impact crusher can work at various sites, it still need to adjust and make preparation before working.

Model FTM938F1210 FTM938F1214 FTM938F1110 FTM1349F1315
Weight(t) 39 44 62 62
Impact crusher PE-1210 PE-1214 HD1110 HD1315
Maximum Feeding Size(mm) 350 350 400 700
Capacity(t/h) 70-130 100-180 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW130×4900 ZSW130×4900
Gensrt(optional) 320KW 320KW 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-8 RCYD(C)-12

Self-circulation design for vortex cavity to protect environment

1.The air in the vortex cavity flows cyclically, which will absorb the dust to reduce pollution.

2.Double dust filtration system cover the whole process, and this will reduce the pollution a lot.

3.The sprinkler at crushing site will reduce the dust.

4.Silencing device effectively avoids troubles from nearby residents and contributes to the social environmental policy.
Features and working principle

Features and working principle

Tyre mobile impact crusher plant

The stone materials will be transport to the impact crusher by feeder, and the crushed stone materials will be delivered to the screen. The mobile crushing station can remove the circular vibrating screen according to the actual production needs.It is easy to operate with other crushing equipment. This Tyre mobile impact crushers for sale are now popular in many field because it can perform much better than the fixed crushers when it comes to the difficult crushing sites like hills or ore mines.

Mobile impact crushing plant in Philippines

Mobile Impact Crusher Technical Parameter

Model FTM938F1210 FTM938F1214 FTM938F1110 FTM1349F1315
Weight(t) 39 44 62 62
Impact crusher PE-1210 PE-1214 HD1110 HD1315
Maximum Feeding Size(mm) 350 350 400 700
Capacity(t/h) 70-130 100-180 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW130×4900 ZSW130×4900
Gensrt(optional) 320KW 320KW 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-8 RCYD(C)-12
Model FTM938F1210 and FTM938F1214
Model FTM938F1210 FTM938F1214
Weight(t) 39 44
Impact crusher PE-1210 PE-1214
Maximum Feeding Size(mm) 350 350
Capacity(t/h) 70-130 100-180
Gensrt(optional) 320KW 320KW
iron separator(optional) RCYD(C)-8 RCYD(C)-8
Model FTM938F1110 and FTM1349F1315
Model FTM938F1110 FTM1349F1315
Weight(t) 62 62
Impact crusher HD1110 HD1315
Maximum Feeding Size(mm) 400 700
Capacity(t/h) 112 280
Gensrt(optional) 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-12
